product power:0.8KW（千瓦）
product capacity:1KVA 【View products of the same capacity】
series:High frequency GT series 【View the same series of products】
voltage input and output:Single in single out (220V:220V)
weight:11.5 kg（ 公斤）
size（LWH）:350*144*230 MM（毫米）6U
Shape classification:
| capacity | 1KVA/0.9KW |
| model | GT1K |
| Rectifier type | IGBT rectifier |
| The rated voltage | 220Vac |
| Input voltage range | 115~300 VAC |
| Input frequency range | 40Hz~60Hz(adjustable) |
| Input power factor | >=0.99 |
| Rated output | 1000VA / 900 W |
| Rated output voltage | 220Vac |
| The output frequency | 50/60 Hz +/- 0.5Hz |
| Way to work | on-line |
| Output waveform | Sine wave |
| Conversion time | 0ms |
| Overload capacity | 125%，50s |
| The battery model | Maintenance-free sealed lead-acid battery |
| Mark the machine backup time | Half-time: ≥11 minutes |
| Battery pack model | 12V7AHX3 |
| Typical battery charging time | 8H |
| The battery voltage | 36V |
| installation | tower |
| The machine efficiency | Up to 90% |
| Electromagnetic compatibility | ICE/EN/AS 62040-1；CISPR 22 A級 |
| Surge protection | ICE/EN 62040-2，滿(mǎn)足ICE/EN 61000-4-5 |
| Protection type | IP20 |
| Interface ports | RS232 with optional Wedpower card and AS400 card |
| The control panel | LED status indicator |
| The alarm | Power outage alarm once 4 seconds: special low battery alarm once per second |
| W | 350.00 mm |
| D | 144.00 mm |
| H | 230.00 mm |
| The weight of the | 11.50 KG |
| color | black |
Operating height
| The work environment | 0 - 40 °C |
| Working relative humidity | 0 - 95% |
| 0-1500m | |
| Storage temperature | -5 - 45 °C |
| Storage relative humidity | 0 - 95% |
| Store height | 0-15000m |
| The auditory noise is 1 m above the device surface | <40.00 dB |
| The standard warranty | Repair or replacement within 3 years |
The backup machine adopts gb plug and socket, please use according to the instruction

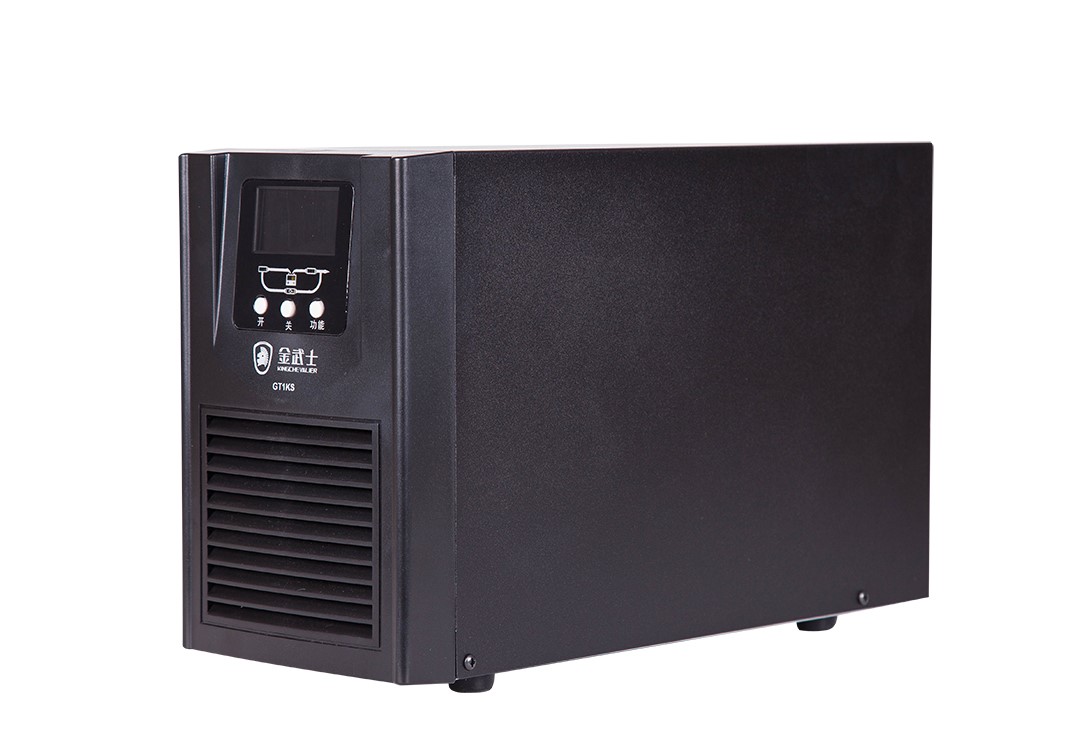

金武士 GT1K
Backup model: one year warranty built-in battery one year warranty
Online model: 3-year warranty
12V24AH capacity battery products: three-year warranty
