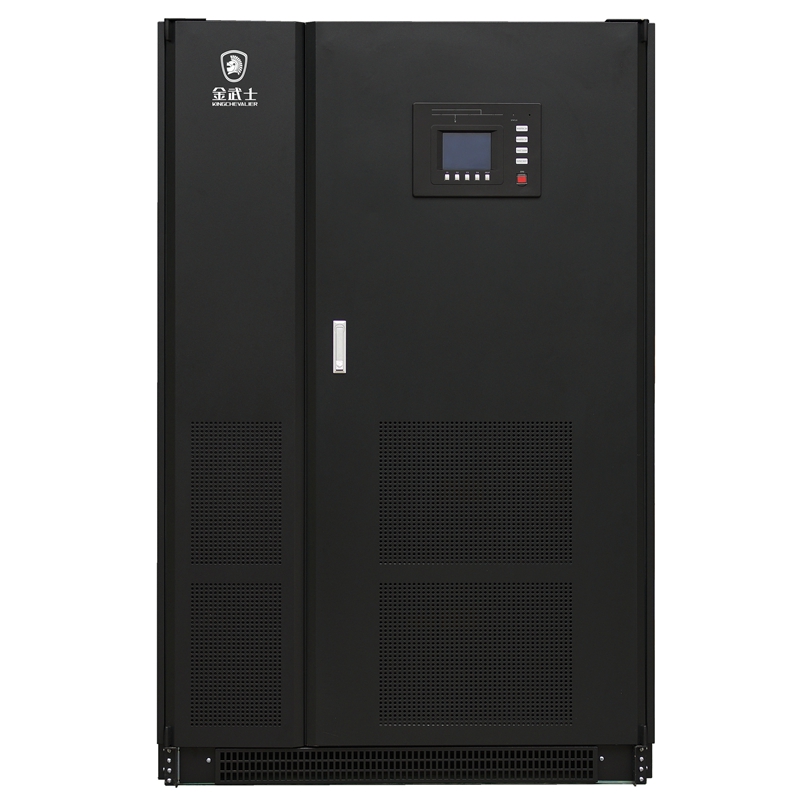

Golden knight TDX - 33400 gs

product power:360KW(千瓦)

product capacity:400KVA 【View products of the same capacity】

series:Power frequency TDX series 【View the same series of products】

voltage input and output:Three in and three out (380V:380V)

weight:2105 kg

size(LWH):855*2265*1900 MM 43U

Shape classification:

  • Product Overview
  • For details
  • Installation Notes
  • Product Image
  • After-sales service
  • Documentation
  • ● Advanced DSP digital control technology

    Adopt advanced digital DSP control technology, make data processing more accurate and rapid, output performance will be more excellent, improve the reliability of the machine.

    ● Large LCD+LED display screen

    Fully considered humanized design, LCD+LED perfect combination, Chinese and English display, display content is rich and easy to understand, easy to operate. LCD display panel is more equipped with switch protection device, to avoid collision or mispress and all kinds of problems, users in the process of using more safe and reliable.

    ● High guarantee double channel AC power input function

    The main AC input power supply and the bypass AC input power supply can be used as two sets of inputs from different power grids, so that the power supply of users can be more fully guaranteed.

    ● Frequency and phase sequence adaptive system

    The output frequency can be set to either 50Hz or 60Hz depending on the mains frequency. The output phase sequence can automatically track the phase lock according to the input phase sequence.

    ● Intelligent charging system

    The user can freely set the appropriate charging current (1~25A) on the LCD control panel according to the battery type, capacity and the use state of the battery. Scientific charging way, make the service life of the battery has been extended adequately.

    ● More excellent electrical performance

    The efficiency of the whole machine is as high as 93%~94%, and the ECO mode is provided to improve the efficiency to more than 97%, greatly reducing the power loss of UPS. The full bridge topology with output isolation transformer is adopted, which has stronger load capacity and impact resistance. The output load power factor reaches 0.8.

    ● Parallel function

    Support 3 UPS parallel redundancy (option).

    ● Excellent battery management features

    TDF series UPS can automatically detect abnormal phenomena such as battery failure, low power, battery loss, etc, which further improves the reliability and safety of UPS.


    TDX-33400GS The basic parameters

    modelTDX-33400GS
    capacity400KVA/360KW

    TDX-33400GS mains

    Input modeThree phase + zero + ground
    Rated AC input380/400/415VAC
    frequency50/60HZ±10%
    Voltage range298VaAC~498VAC
    Soft start with input power5-600 seconds to set
    The power factor0.99(With input filter)

    TDX-33400GS The bypass

    Rated AC input380/400/415VAC
    frequency50/60HZ±10%
    Voltage range±10%,±15%,±20%Can be set up

    TDX-33400GS The output

    Rated AC input380/400/415VAC
    Voltage regulation accuracy±1% (balanced load), ±2% (100% unbalanced load)
    The power factor0.9
    Voltage dynamic transient±5% (0 ~ 100% load variation)
    Total harmonic voltage distortion<1% (100% linear load),  3% (100% non-linear load)
    Voltage dynamic response time<5ms
    Synchronous range±5%
    Inverter overload capacityOutput power because of 0.9 inverter work :105% long-term work, 110% for 1 hour, 125% for 10 minutes, 150% for 1 minute
    Frequency accuracy±0.02%
    waveformPure sine waves

    TDX-33400GS The efficiency of

    Inverter model94%
    ECO mode97%

    TDX-33200GS The other parameters

    Weaver numberUp to 8 N+X parallel connections are supported
    The number of batteries can be adjusted12V, 32 knots (adjustable from 30 ~ 34 knots)
    According toLCD and LED
    Machine size (width × height × depth)mm855*2265*1900
    Net weight (KG)2105
    The temperature-10℃-40℃
    humidity0~95%
    Noise (1M)67dB
    The RS - 232 / optional USBSupports Windows/XP / 7 / Linux/Unix/Mac
    Optional SNMPPower management is supported by SNMP administrators and web browsers
    safetyIEC60950-1,IEC62040-1-1
    Electromagnetic compatibilityIEC62040-2,IEC62040-3


    The backup machine adopts gb plug and socket, please use according to the instruction

    800×1002

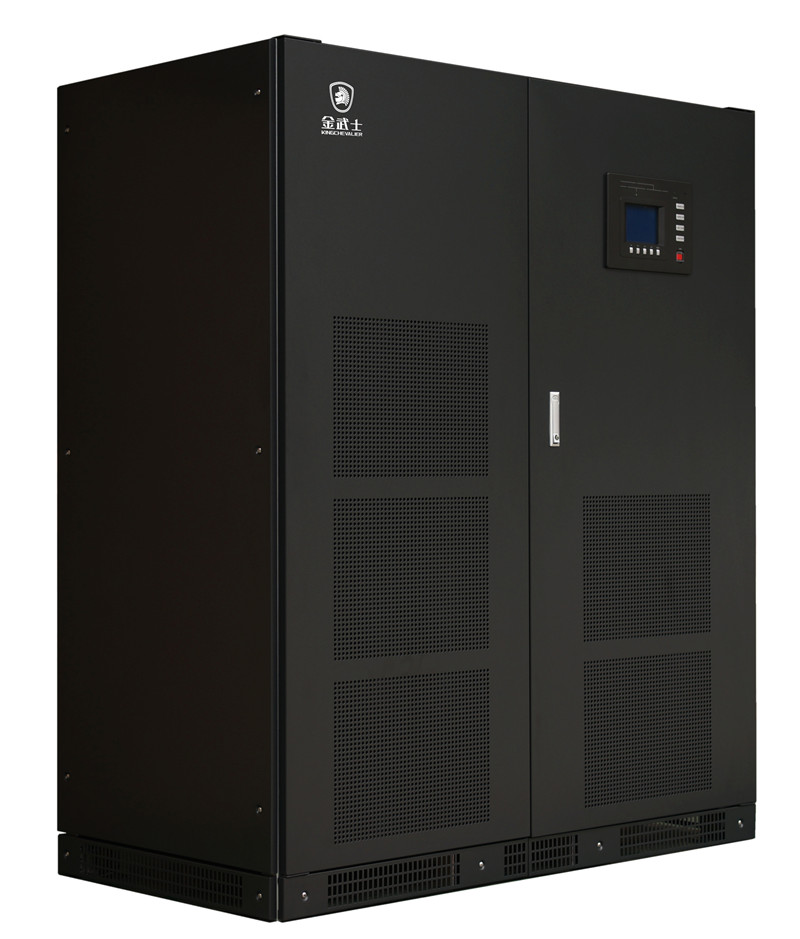

    金武士 TDX-33400GS_2
    800×939

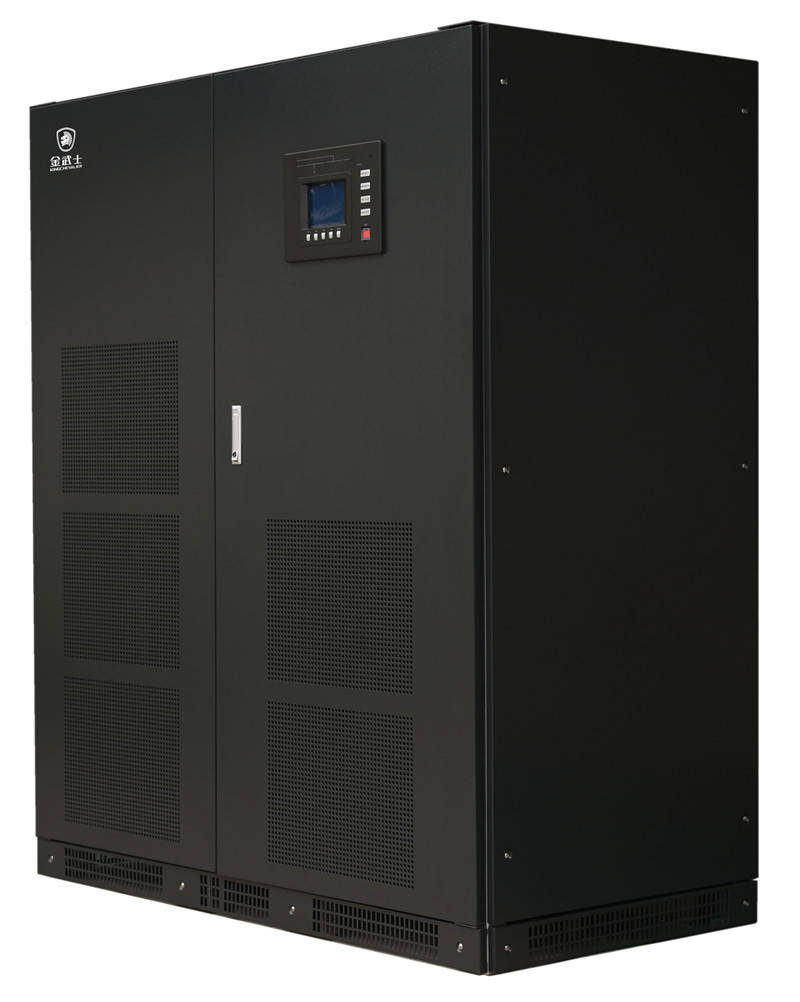

     TDX-33400GS_3
    800×882

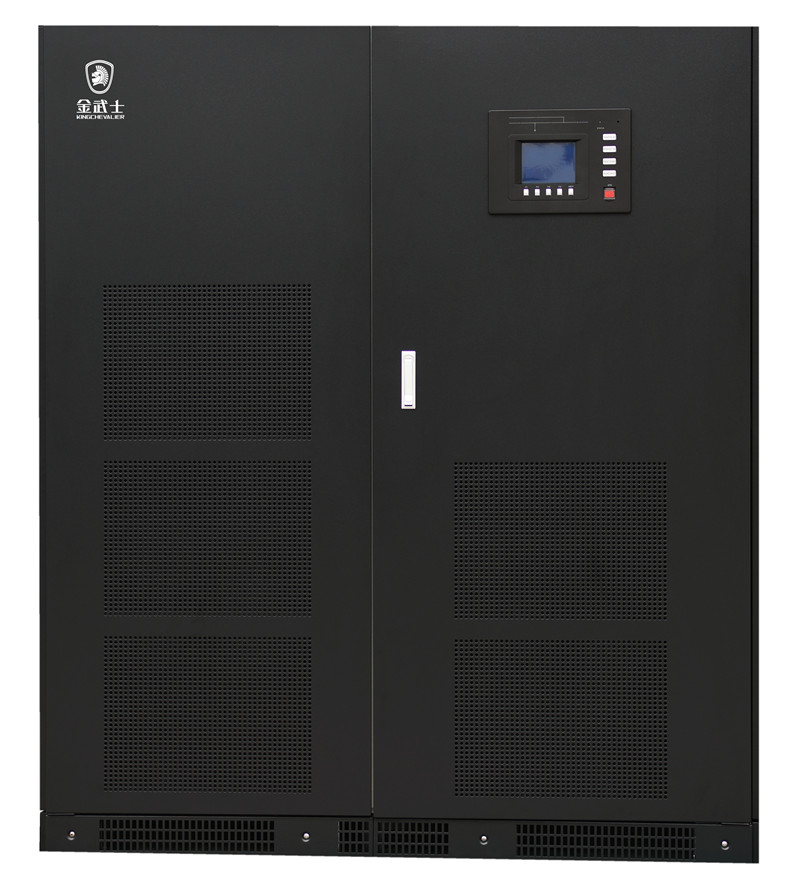

     TDX-33400GS_4

    Backup model: one year warranty built-in battery one year warranty


    Online model: 3-year warranty


    12V24AH capacity battery products: three-year warranty
