  • Golden Samurai ST1VA
< >
  • Golden Samurai ST1VA

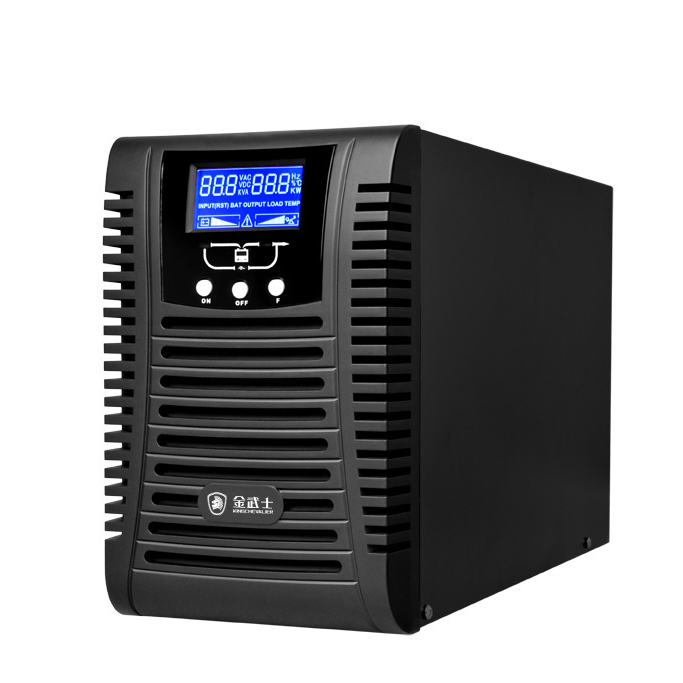

Golden Samurai ST1VA

product power:0.9kW

product capacity:1KVA 【View products of the same capacity】

series:High frequency ST series 【View the same series of products】

voltage input and output:Single in and out (220V:220V)

weight:7.8kg

size(LWH):280*144*230mm

Shape classification:

  • Product Overview
  • For details
  • Installation Notes
  • Product Image
  • After-sales service
  • Documentation
  • product description:


    Golden Samurai ST series high frequency online UPS, using advanced DSP digital control technology, loaded with active input power factor correction (PFC) technology, power supply model


    Intelligent protection systems such as zero-switching and frequency adaptive systems can effectively ensure the continuity and stability of the power supply of key equipment, and are compact and easy to use.






    Application areas:


    Medical, finance, telecommunications, government, transportation, manufacturing, education, enterprises, etc.








    Features:




    Advanced DSP digital control technology:


    Active input power factor correction (PFC)


    The Golden Samurai ST series adopts advanced DSP digital control technology.


    ST series adopts digitally controlled active power factor correction technology


    While improving product performance, it greatly satisfies users’


    (PFC), make the input power factor close to 1, to avoid the grid environment


    The practicality, efficiency, reliability and safety requirements of the even if


    Pollution, achieve the purpose of energy saving and reducing system cost.


    The electrical environment is relatively harsh, which can also ensure the stable and continuous operation of the equipment.




    Ultra-wide input voltage range:


    The ST series provide users with an ultra-wide input voltage range.


    It can also work stably in the mains power supply mode under the power grid environment, reducing electricity


    The number of battery discharges extends the service life of the battery and saves the cost of use.




    Frequency adaptive system:


    The user can set to a fixed 50Hz or 60Hz system, or


    Is set to automatically recognize and adapt to 50Hz 1 60Hz power system, full


    Meet the requirements of different power systems.




    The output power factor is 0.9:


    Adapt to the characteristics of most current electrical equipment to achieve stronger load capacity




    Active input power factor correction (PFC):


    ST series adopts digitally controlled active power factor correction technology


    (PFC) to make the input power factor close to 1.


    Pollution, achieve the purpose of energy saving and reducing system cost.




    Wide input frequency range:



    The wide input frequency range enables the UPS to adapt to different power supplies such as generators.


    Electrical equipment, which can effectively isolate the bad power generated by the power supply equipment, which is negative


    The load provides pure, safe and stable electricity.




    Green:


    This product is a green environmental protection product, in line with national electronic information products


    Pollution control management measures to ensure that the products are not


    Will cause harm to the environment and people.




    Powerful scalability features:


    Smart slot provides a wealth of expandable functions, you can choose


    USB card, AS400 card, CMC monitoring card, SNMP card,


    RS485 card, EMD environmental monitoring card.




    ST6-10K is a new-generation product developed by the company. It adopts a series of new technologies in the industry-PFC soft switching technology, three-level inverter technology, PFC and


    Inverter dual hardware current limiting technology. It has greatly improved performance, efficiency, cost, and power density compared with the previous generation products.


    ●The heat generation of key components is reduced, and the efficiency of the mains battery is greater than 94%.


    ●The size of the chassis is reduced, and the power density is increased.


    ●The air volume of the fan is reduced and the noise is reduced.


    ●Rectifier and inverter hardware real-time current limiting protection, the machine stability is better.





    advanced technology:


    ●The latest soft switching technology is used in the PFC boost, which reduces the PFC IGBT


    Voltage spikes and switching losses increase the instantaneous height of UPS withstand lightning strikes


    Pressure resistance.


    ●Using the latest three-level inverter architecture, solve the problem of half-bridge inverter circuit


    With half-wave load, inductive load problem.


    ●Realize the digitization of inverter control, adopt voltage and current double loop control to improve


    The dynamic response speed is high, and the output performance is improved.


    ●The PFC circuit adopts frequency multiplication control, which effectively improves the efficiency of the whole machine.





    Complex grid adaptability:


    ●Ultra-wide input voltage range: 120AC-275AC


    ●Ultra-wide input voltage range: 40Hz-70Hz


    ●Input power factor>0.99


    ● Eliminate all kinds of pollution and interference in the power grid


    ● Faster input current limiting response speed, providing more perfect protection





    Features


    360° safety protection for key equipment


    ●Advanced DSP digital control technology


    ●Active input power factor correction (PFC).


    ●Frequency Adaptive System


    ●Ultra wide input voltage range


    ●The output power factor is 0.9


    ●Ultra wide input frequency range


    ●Powerful expandability function


    ●Green





      Current electrical ground status Battery power supply mode City input mode City power transmission mode Machine load percentage Machine negative name







    ●Advanced DSP digital control technology

    Advanced DSP digital control technology makes UPS performance higher, product performance more stable, and quality more reliable.

    ●Green

    This product is a green and environmentally friendly product, which complies with the National Electronic Information Product Pollution Control and Management Measures. The product will not cause harm to the environment and humans under normal use.

    ●Active input power factor correction (PFC)

    The use of digitally controlled active power factor correction technology enables the input power factor to be as high as 0.99 or more to avoid pollution of the grid environment and achieve the purpose of energy saving and system cost reduction.

    ●Wide input voltage and frequency range

    Very wide input voltage and frequency range, even in areas with very harsh power environment, it can work stably in the mains power supply mode, reducing the number of battery discharges and extending the battery life.

    ●Zero switching

    When the mains power is abnormal, the UPS will switch to battery power supply, and the conversion time of the UPS power supply mode is zero, which effectively guarantees the safety and reliability of load operation.

    ●Frequency Adaptive System

    It can be set to a fixed 50Hz or 60Hz system. Or automatically recognize and adapt to 50Hz/60Hz power system to meet the requirements of different power systems.

    ●Powerful expandability function

    The intelligent slot provides a wealth of expandable functions, you can choose USB card, AS400 card, CMC monitoring card, SNMP card, RS485 card, EMD environmental monitoring card.

    ●Load power factor is 0.9

    Adapt to the characteristics of most current electrical equipment and improve the load capacity of the machine.

    ●Can be used with generator

    With a wide input voltage and frequency range, it can effectively isolate the bad power generated by the generator and provide a pure, safe and stable power supply for the load.





    ST 1KVA Three-level  detailed parameter table

    Capacity1KVA /900WThree-level
    ModelST 1KVA Three-level

    ST 1KVA Three-level input parameters

    Rectifier typeIGBT rectifier
    The rated voltage220Vac
    Input voltage range90-285VAC single-phase two-wire + ground wire
    Input frequency range40Hz~70Hz(Adjustable)
    Input power factor≥0.99

    ST1KVA Three-level  output parameters

    Rated output power1000VA / 900 W
    Rated output voltage220Vac (1±2%) single-phase two-wire + ground wire
    Output frequency46-54Hz synchronous mains; 50Hz (mains between 40-46Hz and 54-60Hz); 50Hz (battery)
    Way of workingOnline
    Output waveformSine wave
    Conversion time0ms
    Overload capacity105%±5%<load≤125%±5%: switch to bypass output and alarm after 50 seconds; 125%±5%<load≤150%±5%: switch to bypass output and warning after 25 seconds; load> 150%±5%: switch to bypass output and alarm after 300 milliseconds

    ST 1KVA Three-level battery and runtime

    battery modelMaintenance-free lead-acid battery
    DC voltage24Vdc
    recharging current4.5A

    ST 1KVA Three-level system parameters and standards

    Installation methodTower
    Overall efficiencyUp to 90%
    Electromagnetic CompatibilityICE/EN/AS 62040-1; CISPR 22 Class A
    Surge protectionICE/EN 62040-2, meet ICE/EN 61000-4-5
    Protection typeIP20

    ST 1KVA Three-level communication and management

    Interface portRS232, optional Wedpower card, AS400 card
    control panelLED status indication
    Audible alarmAlarm once every 4 seconds when mains power fails: special low battery alarm once every second

    ST 1KVA physical index

    W144.00 mm
    D280.00 mm
    H230.00 mm
    weight7.8KG
    colourblack

    ST 1KVA Three-level environment

    working environment0 - 40 °C
    Relative humidity20% - 95%
    Operating height0-1500 meters
    storage temperature-5 - 45 °C
    Storage relative humidity0 - 95%
    Storage height0-1500 meters
    Audible noise at 1 m from the surface of the device≤50.00 dB

    ST 1KVA Three-level warranty

    Standard warrantyRepair or replace within 3 years




    Input parameters
    Input voltage220V AV
    Enter the live wire diameter2.5mm2
    Input zero wire diameter2.5mm2
    Input ground wire diameter2.5mm2
    Input air switch10A -2P
    Output parameters
    The output voltage220V AV
    Output live wire diameter2.5mm2
    Output neutral wire diameter2.5mm2
    Output ground wire diameter2.5mm2
    Output MCB10A -2P
    Battery parameters
    External battery MCB32A-2P
    External battery wire diameter4mm2




    Backup model: One year warranty, one year warranty for built-in battery


    Online models: three-year warranty


    12V24AH capacity battery products: three-year warranty


    After-sales service contact information throughout the country: Contact us


    7*24 hours service telephone: 400-830-8833
