  • Golden Samurai RM-200K
< >
  • Golden Samurai RM-200K

Golden Samurai RM-200K

product power:200KW(千瓦)

product capacity:200KVA 【View products of the same capacity】

series:Modular RM series UPS 【View the same series of products】

voltage input and output:Three inputs and three outputs (380V:380V)

weight:600 kg( 公斤)

size(LWH):900×900×2000 MM(毫米)45U

Shape classification:

  • Product Overview
  • For details
  • Installation Notes
  • Product Image
  • After-sales service
  • Documentation
  • ● UPS system modular design, N+X redundancy, online hot swap upgrade and expansion.

    ● Super load adaptability and load capacity, super power grid adaptability.

    ● Green energy-saving power supply: the efficiency of the whole machine is greater than 95%, the input power factor is greater than 0.99, and the input current harmonic is less than 3%.

    ● The power module is equipped with dual DSP controllers, and the modules are independently controlled and there is no single point of failure risk.

    ● Rectification, inverter, charging, and discharging all realize DSP digital control.

    ● The use of IGBT modules instead of discrete devices greatly improves the reliability of power modules and systems.

    ● Full frontal maintenance, providing upper and lower wire entry methods to facilitate user wiring.

    ● Large touch screen man-machine interface, rich in information.

    ● Independent charging system, powerful charging capacity, and complete battery management scheme.

    ● Fully digital module parallel technology, excellent circulation index.

    ● Can be installed close to other equipment, saving room space.

    ● Redundant intelligent speed regulating fan, noise reduction and energy saving.

    ● The power distribution system is integrated inside the system cabinet, which is extremely convenient to install and save user investment.

    ● Excellent generator matching performance.

    ● Battery DC start (cold start), easy to operate.

    ● All circuit boards adopt three-proof technology.


    RM-200K Basic parameters

    modelRM-200K
    capacity200KVA/180KW

    RM-200K enter

    Input voltage380V/400V/415VCA (208V is optional for South America)
    Input frequency range50Hz/60Hz
    Input power factorFull load>0.99. Half section>0.98
    THDiTHDi<0.3%
    Soft start time5~30s可設
    Input voltage range228-437Vac
    Frequency Range40-70Hz

    RM-200K battery

    battery voltage±240VDC (12V battery 32-44pcs can be set)
    Charging voltage accuracy±1%
    DC ripple voltage±1%

    RM-200K bypass

    Bypass input voltage380/400/415VAC three-phase four-wire
    Bypass voltage rangeDefault value: -20%-+15%, -40%, -30%, -10%-+10% Other ranges have software settings
    Bypass overload capacity135% long-term operation, 150%<load<180% for more than 1 hour, load>10000ms

    RM-200K Output

    Inverter output voltage380/400/415VAC
    Output voltage accuracy±0.5% (balanced load), ±1% (unbalanced load)
    THDVTHD<1% (linear), THD<3% (non-linear)
    Output power factor1.0(KW=KVA)
    Steady state voltage accuracy±1%
    Maximum peak ratio of output current3∶1
    Output overload capacity110%1h, 125mins, 150%1mins, >150%200ms
    Conversion time0ms

    RM-200K system

    frequency50Hz/60Hz (can be set)
    Mains frequency tracking range±2Hz (default value), adjustable range (+/-0.5Hz-3Hz) is adjusted in integer multiples of 0.5
    Protection levelIP20
    Communication InterfaceRS232.RS485, dry contact, SNMP card, EPO
    System efficiencyEfficiency>96% with load above 50%, efficiency>95% with load above 25%
    Operating temperature0-40℃
    stored temperature-25℃-70℃ (without battery)
    humidity0-95% (non-condensing)
    Noise (db)55-62db, adjustable with load
    weight600KG
    Size (W*D*H/mm)90×900×2000

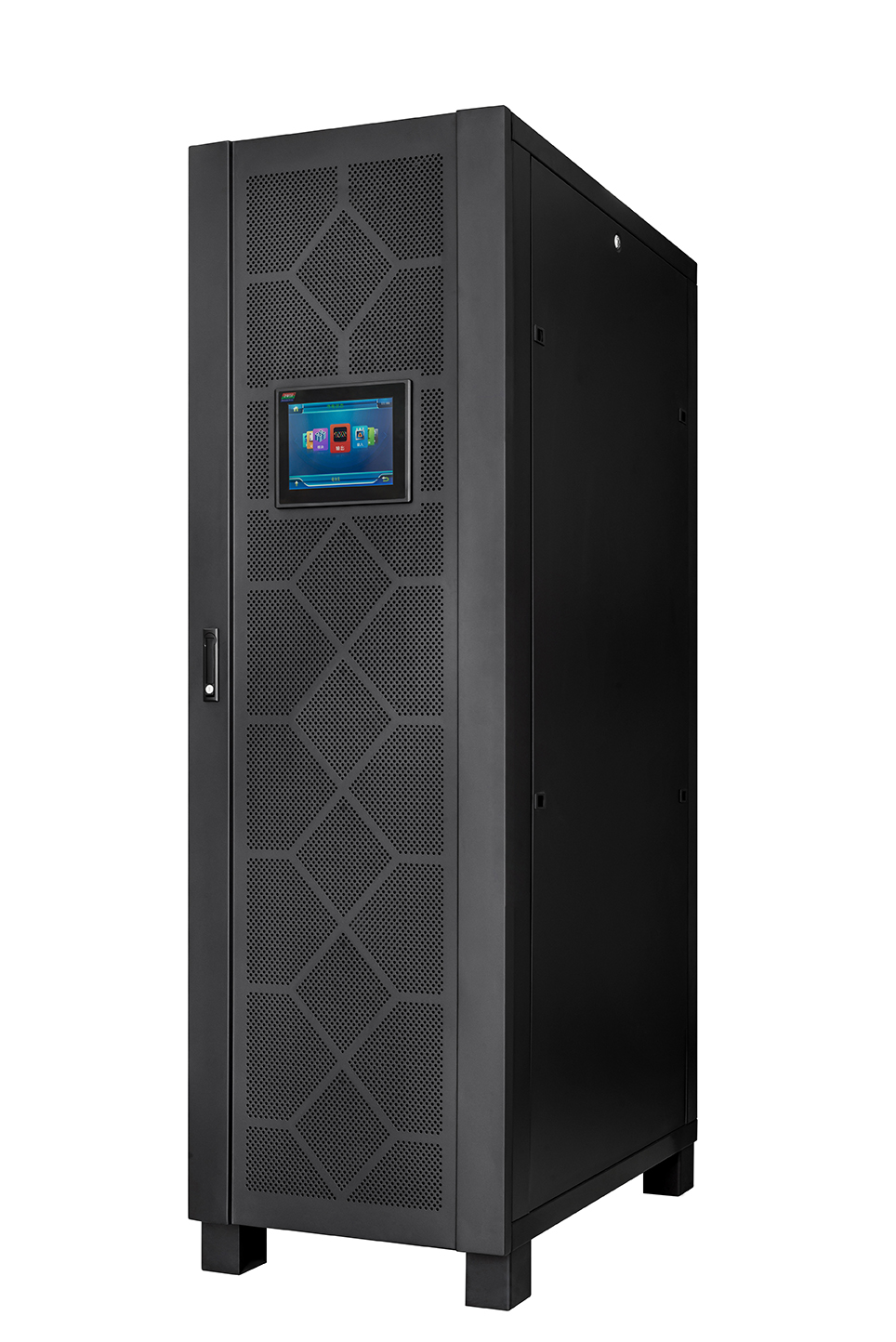

    dsc_5719_1.jpgRM-200K

    Backup model: One year warranty, one year warranty for built-in battery


    Online models: three-year warranty


    12V24AH capacity battery products: three-year warranty


    After-sales service contact information throughout the country: Contact us


    7*24 hours service telephone: 400-830-8833
